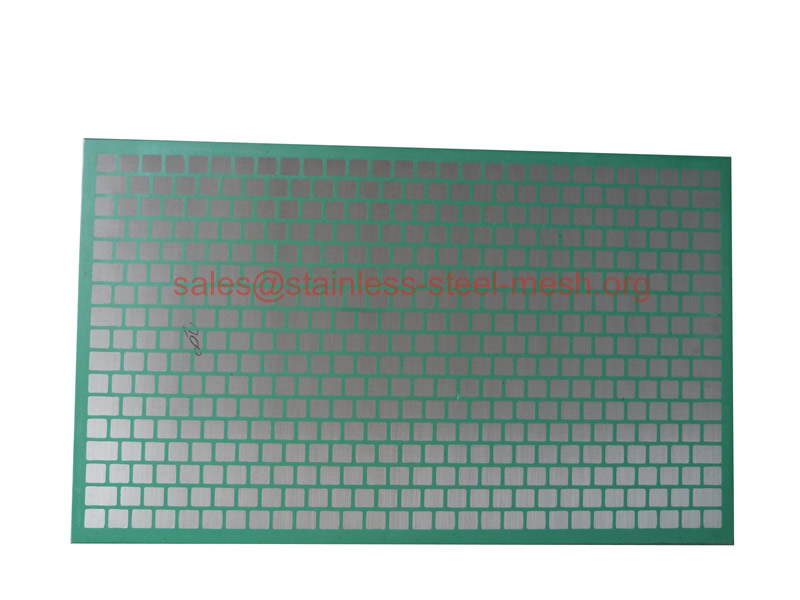

Replacement Steel Frame Shale Shaker Screen for NOV Brandt D380/D285P

Technical Parameter

Mesh Material: stainless steel 304/316/316 L.
Frame Material: Q235 steel.
Screen Type: XL, XR.
API RP 13C Designation: API 20 – API 325.
Color: green.
Package: packed in paper carton, shipped by wooden case.

Send Email

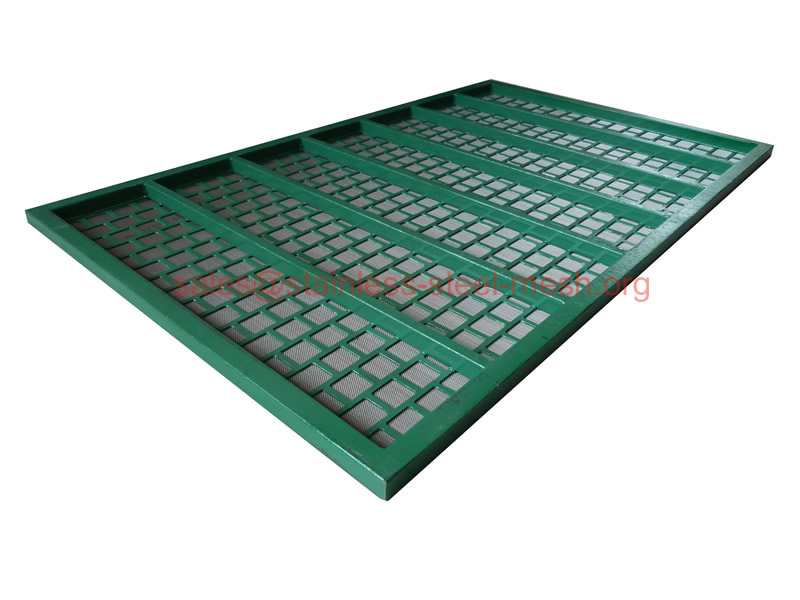

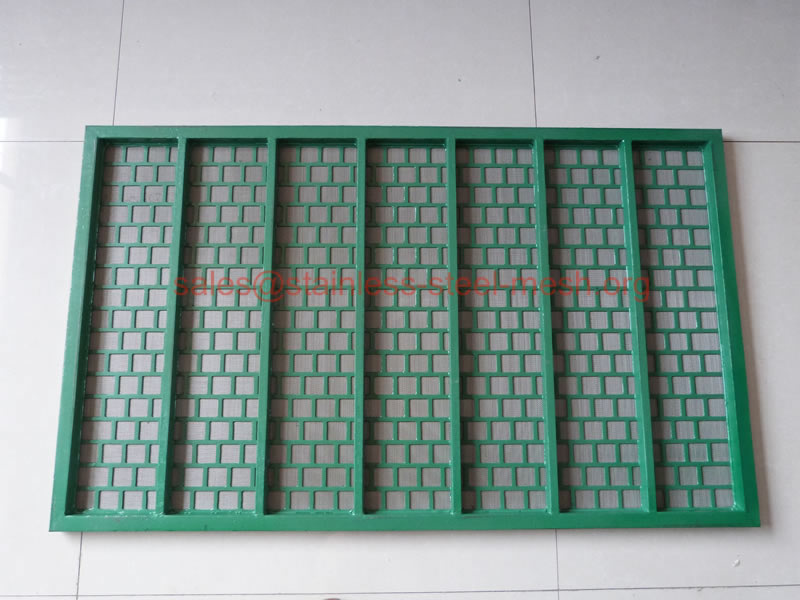

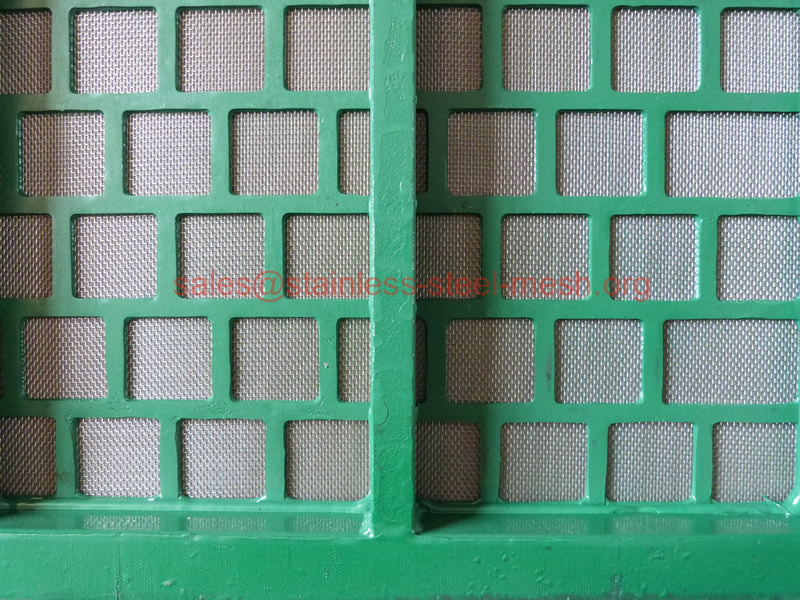

SJ-D380 shaker screen is a popular type steel frame shale shaker screen for solid control equipment. The framework is made of high strength square steel tube or flat steel plate through welding process, finished with extra strengthening supporting tendons. Stainless steel 304 or 316 wire mesh cloth can be combined with the metal plate and frame or directly bonded on the frame. All screens were repairable with special rubber plug when screen surface damaged.

Adaptable Shale Shaker Model

SJ-D380 shaker screens are used as the substitute screen for

  • NOV Brandt D380 shaker
  • NOV Brandt D285P shaker

Competitive Advantage

  • Steel tubular frame with strengthening supporting tendons.
  • SS 304/316 wire mesh cloth does not rust or delaminate.
  • Resistant to fluids that shorten steel frame screen life.
  • Manufactured according to the API RP 13C (ISO 13501).
  • Scientific & reasonable cost control system for competitive price.
  • Adequate inventory in the shortest time to meet customers' demand.
  • Warranty Period: 1 year.
  • Working Life: 400–450 hours.

Performance Parameter

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Non-Blank Area (sq.ft)
SJ-D380-A325 XL API 325 0.44 44 5.8
SJ-D380-A270 XR API 270 0.67 57 5.8
SJ-D380-A230 XR API 230 0.71 68 5.8
SJ-D380-A200 XR API 200 1.32 73 5.8
SJ-D380-A170 XR API 170 1.34 83 5.8
SJ-D380-A140 XR API 140 1.89 101 5.8
SJ-D380-120 XR API 120 1.89 134 5.8
SJ-D380-A100 XR API 100 2.66 164 5.8
SJ-D380-A80 XR API 80 2.76 193 5.8
SJ-D380-A70 XR API 70 3.33 203 5.8
SJ-D380-A60 XR API 60 4.1 268 5.8
SJ-D380-A50 XR API 50 5.17 285 5.8
SJ-D380-A40 XR API 40 8.64 439 5.8
SJ-D380-A35 XR API 35 9.69 538 5.8
SJ-D380-A20 XR API 20 10.88 809 5.8

* D100: Particles this size and larger will normally be discarded.
* API: Corresponding API sieve equivalent as per API RP 13C.
* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.
