Replacement Hook Strip Soft Screens for Brandt 4' × 5' / B40 Shakers
Mesh Material: stainless steel 304/316/316 L.
Frame Material: Q235 steel.
Screen Type: XL, XR, MG.
API RP 13C Designation: API 120 – API 325.
Suitable Environment: water-based.
Package: packed in paper carton, shipped by wooden case.

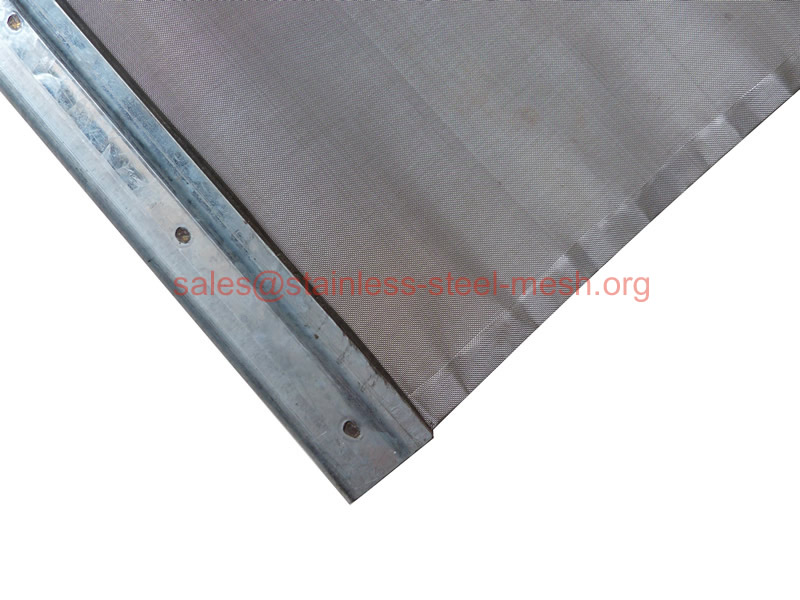

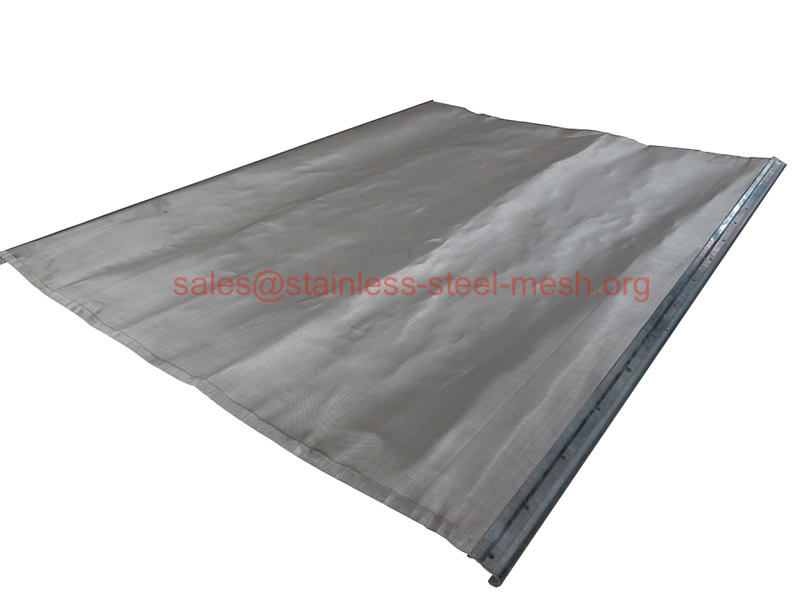

Replacement Brandt 4' × 5' / B40 shaker screen is a kind of hook strip soft shaker screen. It is made of 304 stainless steel wire mesh cloth, designed with 2–4 layers composite bonded construction. Without steel backing plate, it offers maximum non-blanked area but increased fluid capacity. Bottom layer is made of coarse stainless steel wire mesh. It can supplies sieving action and serves as a support plate.
Adaptable Shale Shaker Model
SJ-B40 shaker screens are used as the substitute screen for
|Screen Designation||Mesh Type||API RP 13C Designation||Conductance Number||D100 Separation (microns)||Layer No.||Non-Blank Area (sq.ft)|
* D100: Particles in this size and larger will normally be discarded.
