Brandt BLT-50/LCM-2D

Brandt BLT-50/LCM-2D

Replacement Flat Screens for Brandt BLT-50/LCM-2D Shakers

Technical Parameter

Mesh Material: stainless steel 304/316/316 L.
Frame Material: Q235 steel.
Screen Type: XL, XR.
API RP 13C Designation: API 20–API 325.
Package: Packed in paper carton, shipped by wooden case.

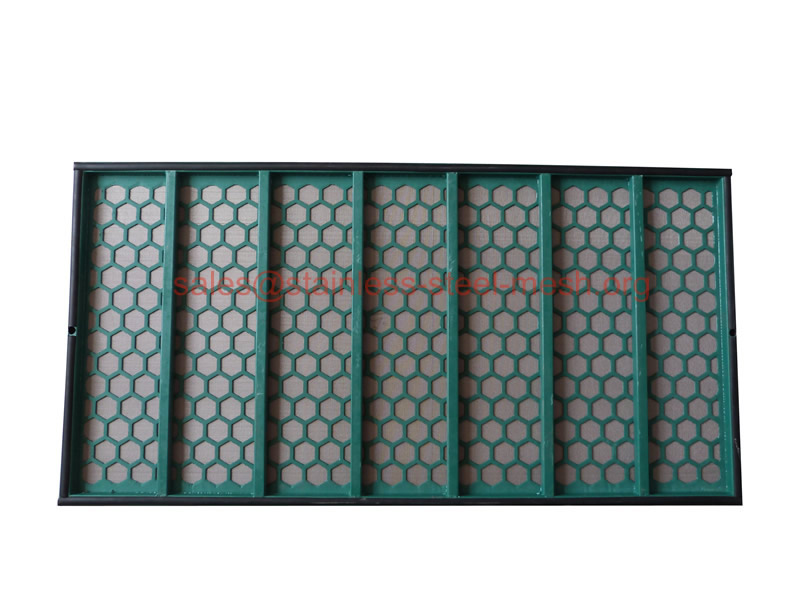

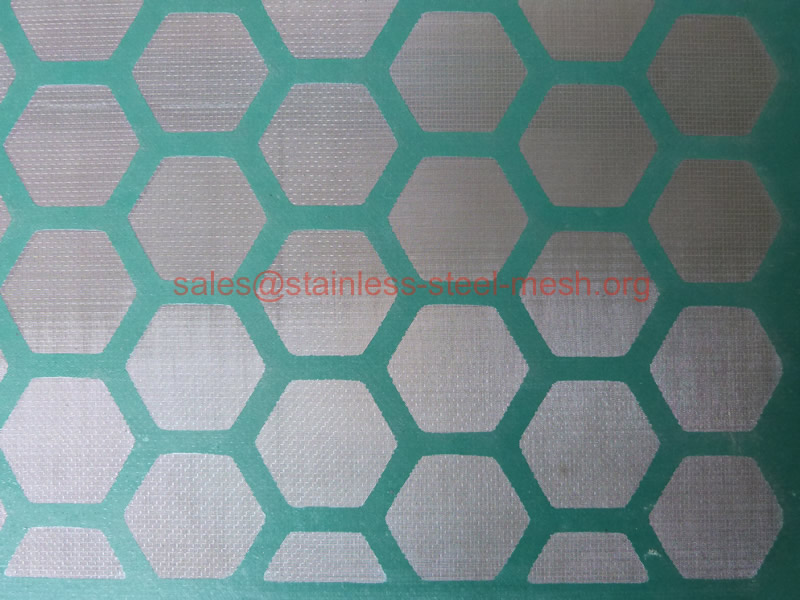

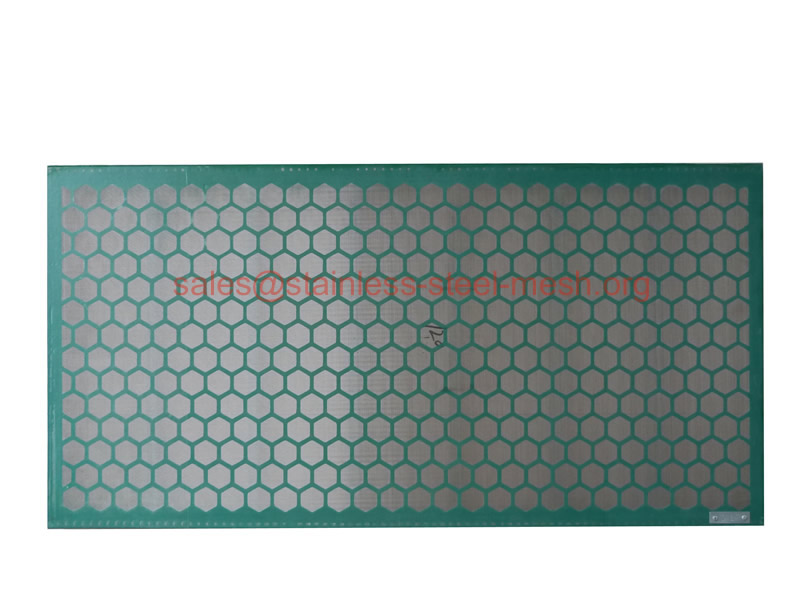

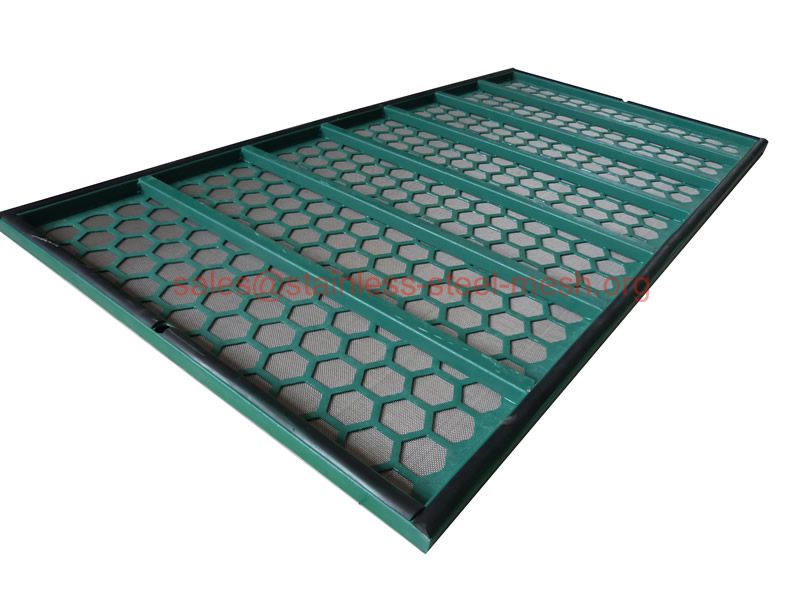

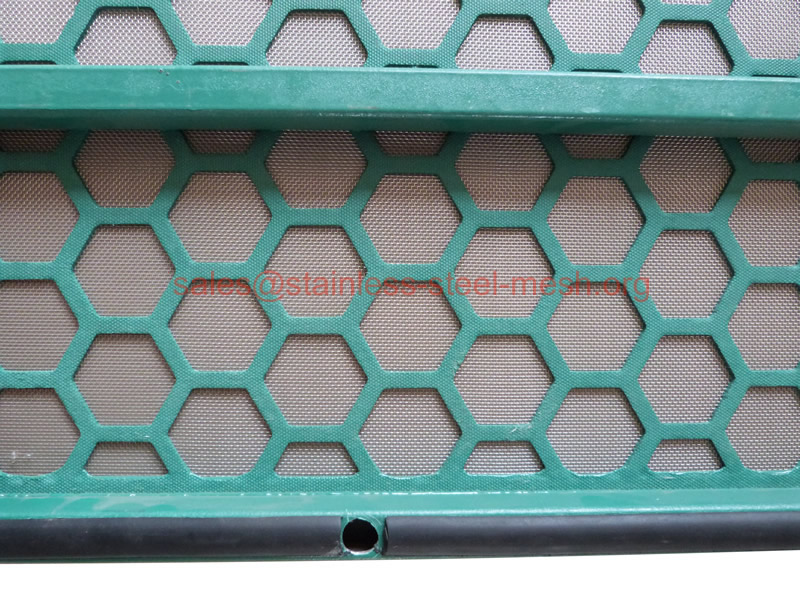

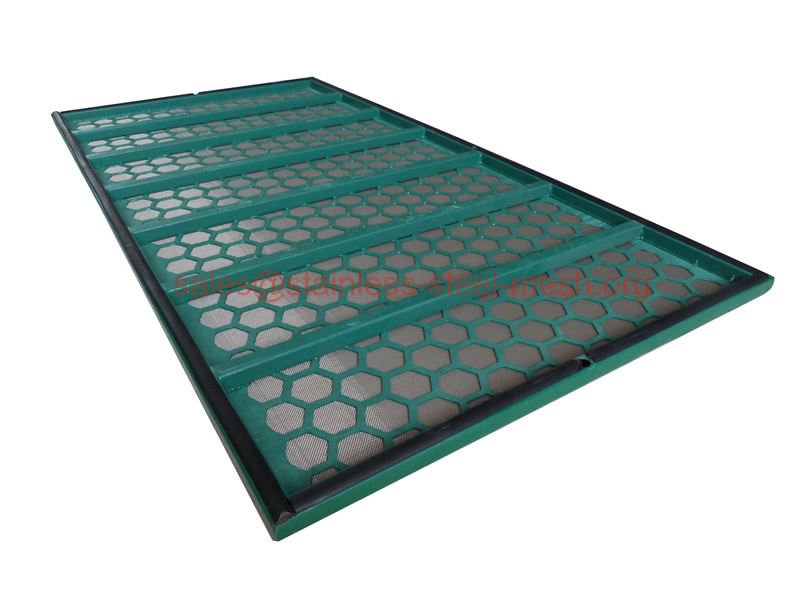

SJ-LCM-2D shaker screens are constructed with two or three layers of 304 or 316 stainless steel wire mesh cloth, and then combined together with a steel backing plate. This type of shaker screen is produced for the replacement screen for Brandt BLT-50/LCM-2D (bottom basket) shale shaker. Mesh size range is from API 20 to API 325. The screens vary greatly in size and shape for different layers. Thus, the intensity and endurance of the screen have been infinitely enhanced, so as to achieve maximum solids removal efficiency.

Adaptable Shale Shaker Model

SJ-LCM-2D shaker screens are used as the substitute screen for

  • Brandt BLT-50 shale shaker.
  • Brandt LCM-2D shale shaker.

Competitive Advantage

  • Reliable, low-maintenance, trouble-free operation.
  • Specialty design for maximum solids removal efficiency.
  • Integrated drying screen for fine screen deck.
  • Manufactured according to the API RP 13C (ISO 13501).
  • Scientific & reasonable cost control system for competitive price.
  • Adequate inventory in the shortest time to meet customers' demand.
  • Warranty Period: 1 year.
  • Working Life: 400–450 hours.

Performance Parameter

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No. Non-Blank Area (sq.ft)
SJ-LCM-2D-A325 XR/XL API 325 0.37 44 2/3 8.6
SJ-LCM-2D-A200 XR/XL API 200 0.54 72 2/3 8.6
SJ-LCM-2D-A170 XR/XL API 170 0.7 98 2/3 8.6
SJ-LCM-2D-A140 XR/XL API 140 1.14 104 2/3 8.6
SJ-LCM-2D-A120 XR/XL API 120 1.55 119 2/3 8.6
SJ-LCM-2D-A100 XR/XL API 100 2.04 147 2/3 8.6
SJ-LCM-2D-A80 XR/XL API 80 2.33 195 2/3 8.6
SJ-LCM-2D-A70 XR/XL API 70 2.85 223 2/3 8.6
SJ-LCM-2D-A60 XR/XL API 60 3.09 275 2/3 8.6

* D100: Particles this size and larger will normally be discarded.

* API: Corresponding API sieve equivalent as per API RP 13C.

* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.
