PMD 600 Series

FLC 2000 / 48-30 PWP

FLC 2000 / 48-30 PMD

FLC 500 Series PWP

FLC 500 Series PMD

PMD 600 Series

Hyperpool PWP

Hyperpool PMD

PMD 600 Series

Replacement PMD Screens DP 600 Series Shakers

Technical Parameter

Material: stainless steel 304/316/316 L.
Body Material: stainless steel plate.

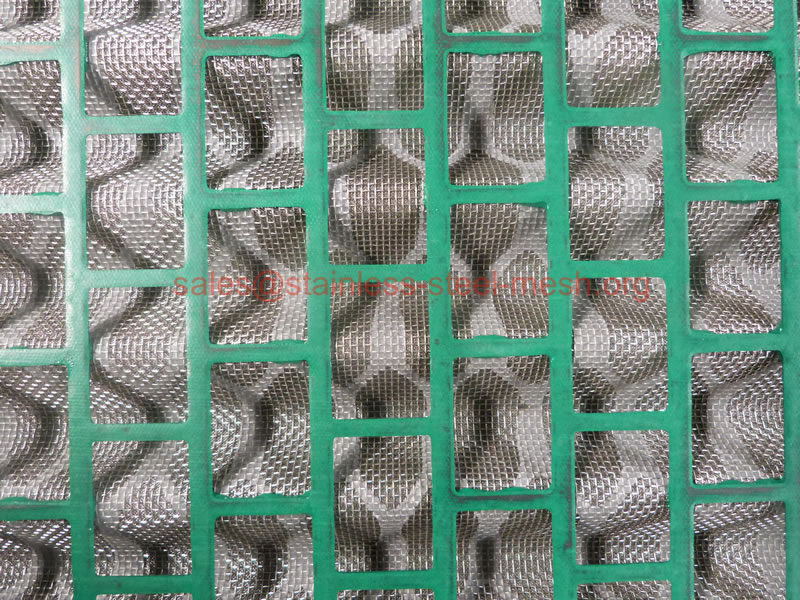

Construction Type: PMD (pyramid).
API RP 13C Designation: API 20 – API 325.
Series: DX, DF, HP optional.
Color: green.
Package: 2 pcs per carton, packed in wooden case.

Send Email

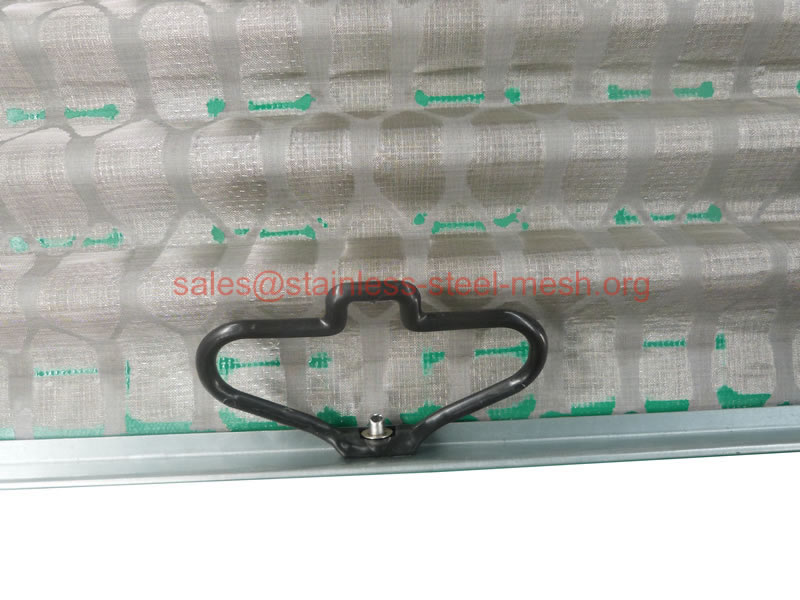

PMD 600 shaker screen with dimension of 626 × 710 mm which is smaller than other screen panels, it is the replacement screen for DP (Dual Pool) Dual pool 600 series shale shakers. There are 6 or 8 panels needed for each DP 600 shaker. Innovative actuated screen compression system drives the center of the screen panel downward and firmly sealing the screen panel to the screen frame. The mud recovery is greatly improved.

Adaptable Shale Shaker Model

PMD 600 shaker screens are used to as the substitute screen for:

  • DP (Dual Pool) 626 shaker.
  • DP (Dual Pool) 616 shaker.
  • DP (Dual Pool) 628 shaker.
  • DP (Dual Pool) 618 shaker.
  • DP (Dual Pool) 626 VE (Vapor Extraction).
  • DP (Dual Pool) 616 VE (Vapor Extraction).
  • DP (Dual Pool) 628 VE (Vapor Extraction).
  • DP (Dual Pool) 618 VE (Vapor Extraction).

Competitive Advantage

  • Light-weight screen panels for fast, user-friendly screen changes.
  • Easy screen inspection, removal, and installation.
  • Maximize solids removal capabilities.
  • Increase shaker capacity and reduce mud loss.
  • API RP 13C (ISO 13501) compliant.
  • Adequate inventory in the shortest time to meet customers' demand.
  • Warranty Period: 1 year.
  • Working Life: 400–450 hours.

Performance Parameter

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No. Screen area (sq.ft)
SJ-PMD DP 600-A200 DX API 200 0.95 78 2/3 4.85
SJ-PMD DP 600-A170 DX API 170 1.36 97 2/3 4.85
SJ-PMD DP 600-A140 DX API 140 1.92 115 2/3 4.85
SJ-PMD DP 600-A120 DX API 120 1.92 120 2/3 4.85
SJ-PMD DP 600-A100 DX API 100 2.33 154 2/3 4.85
SJ-PMD DP 600-A80 DX API 80 3.09 184 2/3 4.85
SJ-PMD DP 600-A70 DX API 70 3.80 221 2/3 4.85
SJ-PMD DP 600-A60 DX API 60 4.68 257 2/3 4.85
SJ-PMD DP 600-A50 DX API 50 5.50 314 2/3 4.85
SJ-PMD DP 600-A45 DX API 45 5.84 360 2/3 4.85
SJ-PMD DP 600-A40 DX API 40 6.59 453 2/3 4.85
SJ-PMD DP 600-A35 DX API 35 7.06 503 2/3 4.85
SJ-PMD DP 600-A325 DF API 325 0.38 44 2/3 4.85
SJ-PMD DP 600-A270 DF API 270 0.44 53 2/3 4.85
SJ-PMD DP 600-A230 DF API 230 0.71 67 2/3 4.85
SJ-PMD DP 600-A20 DF API 20 0.93 821 2/3 4.85

* D100: Particles this size and larger will normally be discarded.
* API: Corresponding API sieve equivalent as per API RP 13C.
* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.
