FLC 500 Series PMD

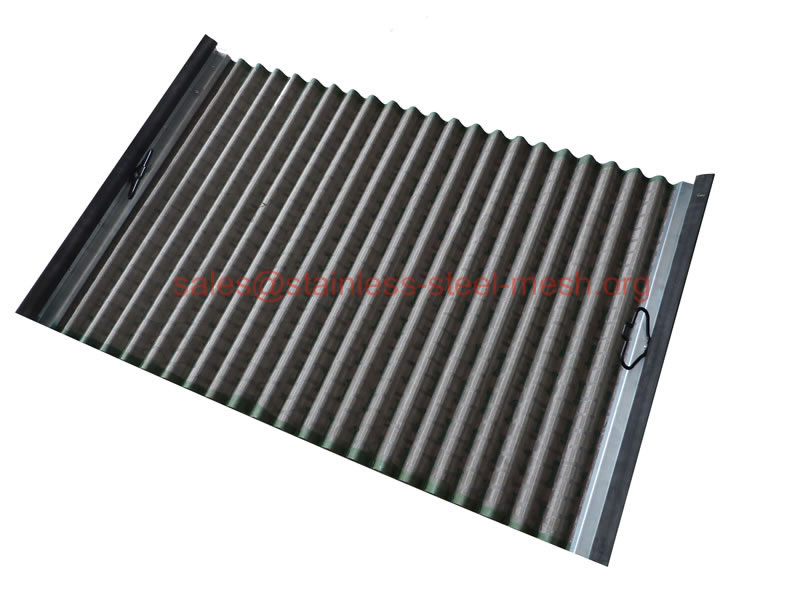

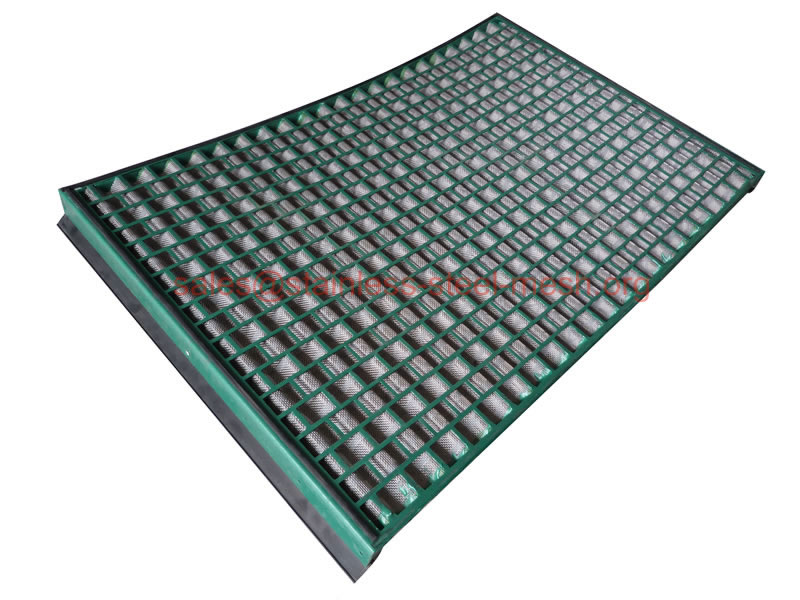

Replacement PMD Screens for FLC (Flo-Line Cleaner) 500 Series Shale Shakers

Technical Parameter

Material: stainless steel 304/316/316 L.
Body Material: stainless steel plate.

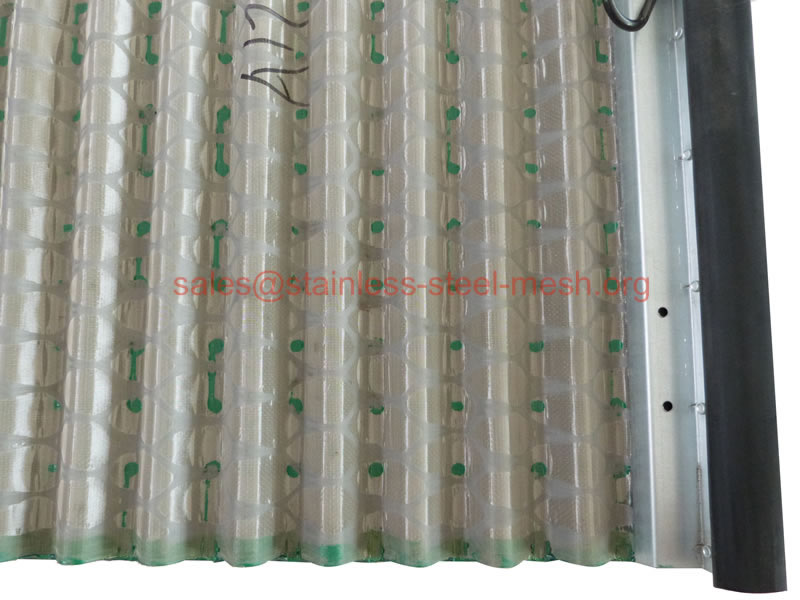

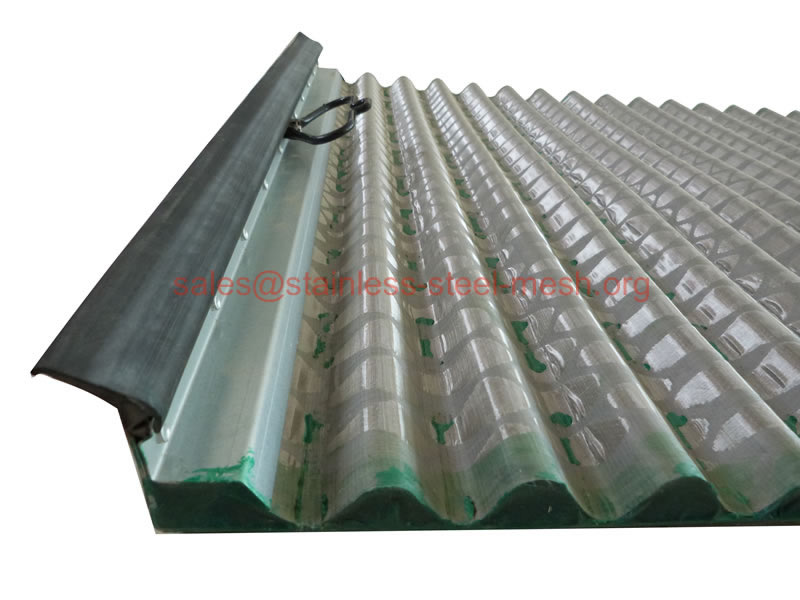

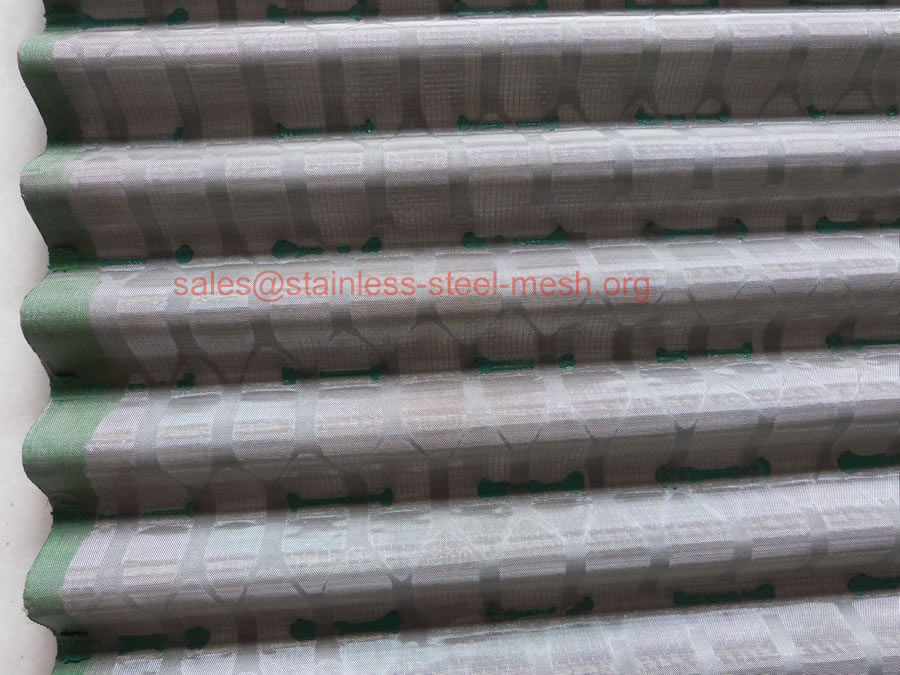

Construction Type: PMD (pyramid).
API RP 13C Designation: API 20 – API 325.
Series: DX, DF, HP optional.
Color: green.
Package: 2 pcs per carton, packed in per wooden case.

Send Email

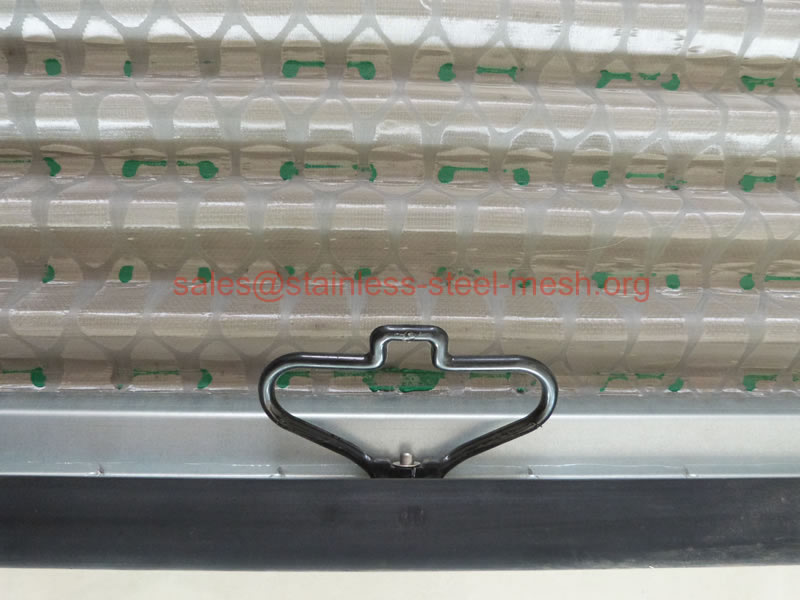

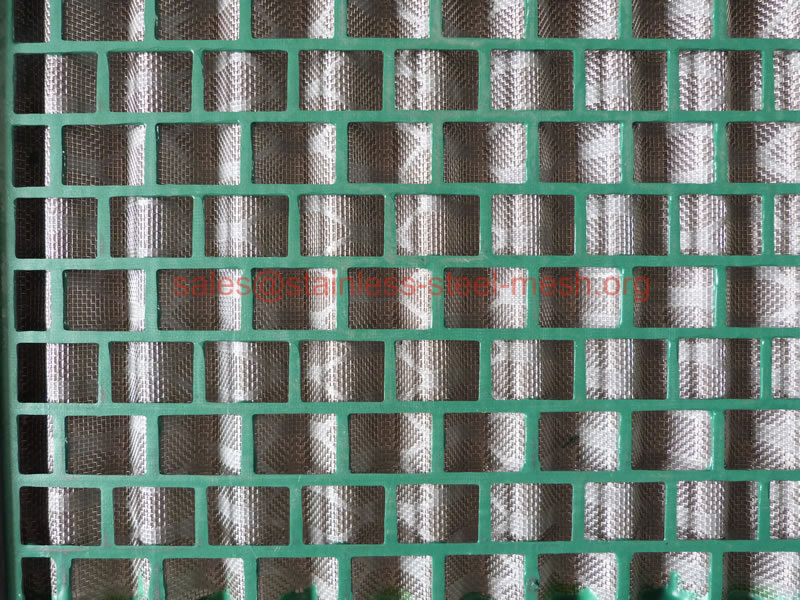

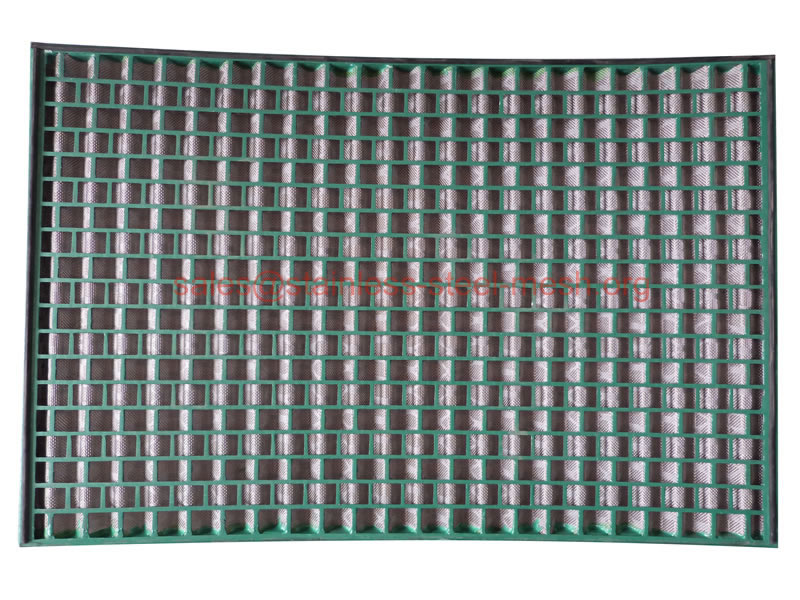

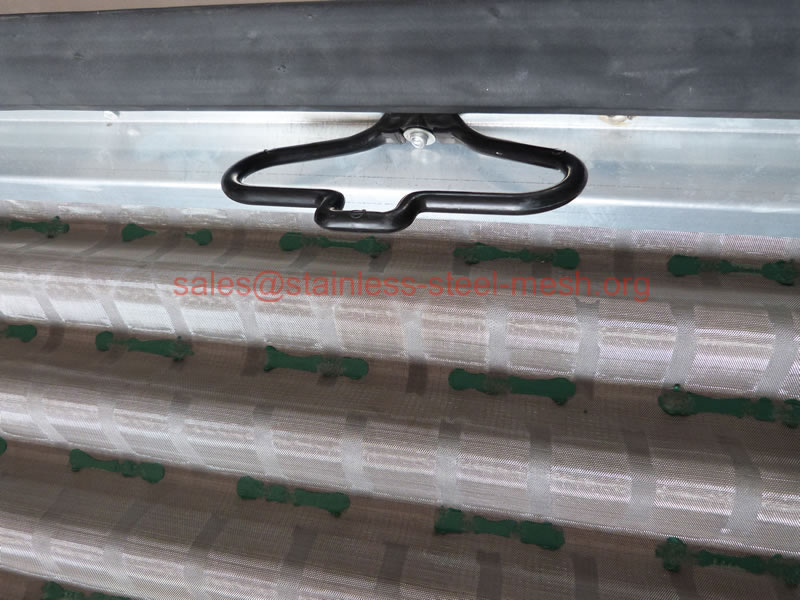

FLC (Flo-Line Cleaner) 500 PMD shaker screen replacement is manufactured for all FLC (Flo-Line Cleaner) 500 series shale shakers. Innovative tension fingers and two quick-lock 1/2 turn tension bolts on each screen panel make the installation faster, easier and more reliable. The bottom layer with low mesh counts is waved by coarse wires, then tightly bonded to the backing plate. It offers longer service life and maximizes the separation efficiency.

Adaptable Shale Shaker Model

SJ-PMD 500 shaker screens are used as the substitute screen for

  • FLC (Flo-Line Cleaner) 503 shaker.
  • FLC (Flo-Line Cleaner) 504 shaker.
  • FLC (Flo-Line Cleaner) 503 drying shaker.
  • FLC (Flo-Line Cleaner) 504 drying shaker.
  • FLC (Flo-Line Cleaner) 513 shaker.
  • FLC (Flo-Line Cleaner) 514 shaker.
  • FLC (Flo-Line Cleaner) 513 VE (Vapor Extraction).
  • FLC (Flo-Line Cleaner) 514 VE (Vapor Extraction).

Competitive Advantage

  • Resistant to corrosion, high temperature and collision.
  • Quick-lock tension system, excellent trapping (dreg) effect.
  • 56% more screen surface area than flat screens.
  • Maximize the solids removal capabilities.
  • Increase shaker capacity and reduce mud loss.
  • API RP 13C (ISO 13501) compliant.
  • Adequate inventory in the shortest time to meet customers' demand.
  • Warranty Period: 1 year.
  • Working Life: 400–450 hours.

Performance Parameter

Screen Designation Mesh Type API RP 13C Designation Conductance Number D100 Separation (microns) Layer No. Non-Blank Area (sq.ft)
SJ-PMD 500-A325 DF API 325 0.39 44 2/3 7.09
SJ-PMD 500-A230 DF API 230 0.71 68 2/3 7.09
SJ-PMD 500-A200 DX API 200 1.32 73 2/3 7.09
SJ-PMD 500-A170 DX API 170 1.34 83 2/3 7.09
SJ-PMD 500-A140 DX API 140 1.89 101 2/3 7.09
SJ-PMD 500-A120 DX API 120 1.89 134 2/3 7.09
SJ-PMD 500-A100 DX API 100 2.66 164 2/3 7.09
SJ-PMD 500-A80 DX API 80 2.76 193 2/3 7.09
SJ-PMD 500-A70 DX API 70 3.33 203 2/3 7.09
SJ-PMD 500-A50 DX API 50 5.17 285 2/3 7.09
SJ-PMD 500-A40 DX API 40 8.64 439 2/3 7.09
SJ-PMD 500-A35 DX API 35 9.69 538 2/3 7.09
SJ-PMD 500-A20 DF API 20 10.88 809 2/3 7.09
* D100: Particles this size and larger will normally be discarded.
* API: Corresponding API sieve equivalent as per API RP 13C.
* Conductance No.: This represents the ease with which a liquid can flow through the screen. Larger values represent higher volume handing.
